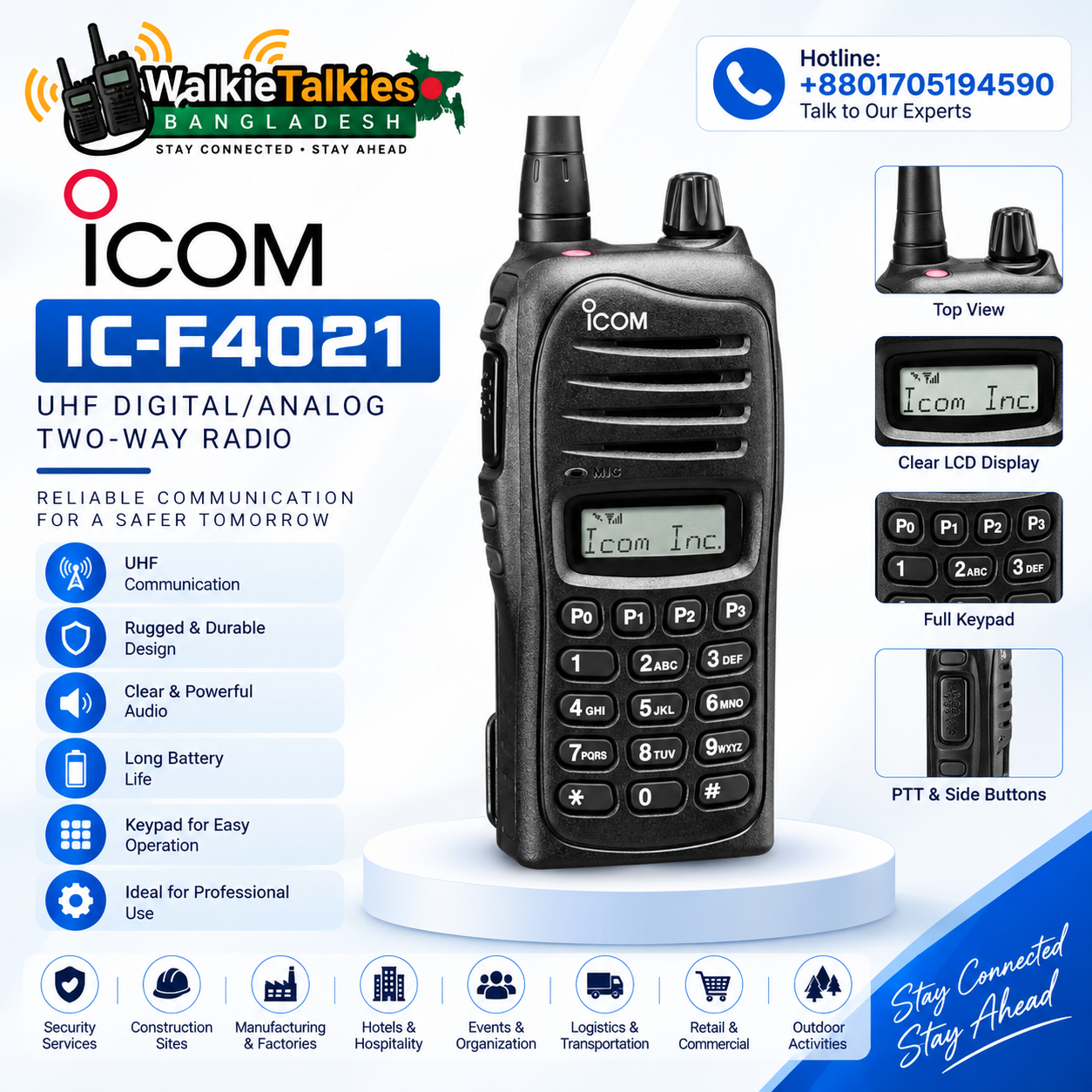

Professional UHF Two-Way Radio for Reliable Business Communication

The ICOM IC-F4021 is a professional-grade UHF handheld two-way radio designed for businesses, security teams, construction sites, industrial facilities, hospitality operations, logistics teams and other organizations that require dependable push-to-talk communication.

Part of Icom’s rugged IC-F4021 series, the radio combines a compact handheld body with a large 8-character alphanumeric LCD, programmable keypad and function buttons, 128 memory channels across 8 zones, multiple signaling systems, scanning functions and a powerful audio system.

The keypad-equipped IC-F4021T configuration provides convenient access to programmed channels and radio functions, making it suitable for users who need more control than a basic channel-only handheld radio. The series was designed around a durable aluminum die-cast chassis and carries IP54 dust protection and splash resistance, together with MIL-STD environmental testing.

Important: The IC-F4021 is an older/discontinued Icom radio family. Exact frequency range, accessories, battery configuration and condition should be confirmed for the specific unit being sold.

Key Features

• Professional UHF handheld two-way radio
• Keypad-equipped IC-F4021T configuration
• 400–470 MHz UHF version available
• 450–512 MHz UHF version also existed
• Up to 128 memory channels
• 8 programmable zones
• 8-character alphanumeric LCD
• Programmable P0–P3 and other function buttons
• 4W UHF RF output
• 12.5 / 25 kHz channel spacing
• 2.5 / 3.125 kHz PLL channel steps
• Built-in 2-Tone signaling
• Built-in 5-Tone signaling
• CTCSS / DTCS
• MDC 1200 compatibility
• Mode-dependent scanning
• Priority and normal scan
• Lone Worker function
• Nuisance Delete
• Surveillance function
• Low-battery warning
• Two-step power saving
• DTMF autodial memories
• Optional voice scrambler
• Optional VOX/headset operation
• Optional Man Down function
• Emergency function through programmable controls
• 500mW audio output
• IP54 dust/splash protection
• MIL-STD-810 environmental ruggedness
• Aluminum die-cast chassis
• Compact professional design
• Lithium-ion battery platform

These capabilities are documented in Icom-related product literature and technical specifications for the IC-F4021 series.

Professional UHF Communication

The IC-F4021 series was produced in UHF configurations including 400–470 MHz and 450–512 MHz, depending on the exact model variant. The keypad version corresponding to the 400–470 MHz configuration is commonly identified as IC-F4021T 01.

For your website, I recommend displaying the frequency as:

Frequency: 400–470 MHz UHF — subject to exact unit/variant

rather than simply stating that every IC-F4021 operates across 400–470 MHz.

This distinction is important because the IC-F4021 family included multiple frequency variants.

128 Memory Channels with 8 Zones

One of the major advantages of the IC-F4021 is its 128-channel capacity divided into 8 zones.

This allows organizations to organize their communication structure according to teams, locations or operational requirements.

For example:

Zone 1: Security
Zone 2: Maintenance
Zone 3: Operations
Zone 4: Logistics
Zone 5: Management
Zone 6: Emergency
Zone 7: Warehouse
Zone 8: Event Coordination

The exact programming depends on the radio configuration and licensed/authorized frequencies.

The 128-channel/8-zone architecture is documented for the IC-F4021 series.

Large 8-Character LCD Display

The keypad version features an 8-character alphanumeric LCD display.

The display can provide information such as:

• Channel name
• Zone
• Tone/code information
• Scanning status
• Battery condition
• Signal information
• Transmit/receive status
• Other programmed radio indicators

This makes the IC-F4021 easier to operate than a basic radio without a display.

Programmable Keypad & Function Buttons

The IC-F4021T features a numeric keypad and programmable function controls.

Icom documentation describes programmable buttons including P0–P3, along with additional programmable controls. These can be assigned according to operational requirements.

Possible functions can include:

• Channel selection
• Scan
• Monitor
• Emergency
• Other programmed radio functions

This flexibility makes the radio particularly useful for professional deployments where different teams may require different operating configurations.

Clear & Powerful 500mW Audio

The IC-F4021 features approximately 500mW audio output, providing strong speaker output for professional handheld communication. The published receiver specifications list 0.25 μV typical sensitivity at 12 dB SINAD and strong adjacent-channel and intermodulation performance.

This is especially useful in environments where background noise may make low-volume radios difficult to hear.

Potential applications include:

• Construction sites
• Factories
• Warehouses
• Security operations
• Hotels
• Events
• Transportation facilities

Multiple Signaling Systems

The IC-F4021 includes several built-in signaling systems designed for organized professional communication.

Supported signaling includes:

• CTCSS
• DTCS
• 2-Tone
• 5-Tone
• MDC 1200 compatibility

These systems can be used to organize communication groups, selective calling and other operational functions depending on configuration.

2-Tone & 5-Tone Selective Calling

The radio supports multiple 2-Tone and 5-Tone signaling configurations.

Icom documentation indicates that multiple 2-Tone and 5-Tone codes can be decoded per channel, with programmable responses such as:

• Beep
• Answer back
• Scan
• Bell indication
• Radio stun/kill

This can be particularly useful in organized dispatch and professional communication systems.

MDC 1200 Compatibility

The IC-F4021 series supports MDC 1200 compatibility with limited functions.

MDC 1200 can provide additional signaling capabilities such as radio identification and certain call/control functions when properly configured.

This makes the IC-F4021 suitable for organizations operating structured analog radio systems.

Mode-Dependent Scanning

The IC-F4021 supports mode-dependent scanning.

One useful advantage of this system is that the scanning list can change automatically according to the selected operating channel or mode.

This can simplify operation for users who move between different communication areas.

For example, a security officer moving between different operational zones can use programmed scan configurations rather than manually rebuilding the scan list each time.

Lone Worker Function

The Lone Worker function is designed for personnel working alone.

When enabled, the radio can monitor whether the user interacts with the radio within a programmed period. If the user does not respond to the required prompt, the radio can initiate an emergency transmission according to the programmed configuration.

This can be useful for:

• Security guards
• Maintenance workers
• Remote technicians
• Industrial workers
• Facility personnel
• Night-shift employees

Icom documentation specifically lists Lone Worker as a feature of the IC-F4021 series.

Optional Man Down Function

The IC-F4021 series supports an optional UT-124/UT-124R Man Down unit, depending on the specific version and installation.

A Man Down system can detect certain conditions where the radio is positioned abnormally and can trigger an emergency procedure according to configuration.

This is especially relevant for personnel working in potentially hazardous environments.

Important: Man Down should be described as an optional feature, not a guaranteed built-in function on every IC-F4021 unit.

Optional Voice Scrambler

The IC-F4021 series can accommodate optional voice scrambling modules such as:

• UT-109R
• UT-110R

These options were designed to provide additional voice privacy for compatible configurations.

Again, the voice scrambler should be listed as optional, unless the specific radio being sold has the module installed.

Optional Hands-Free VOX Operation

The radio can support hands-free operation through a compatible optional VOX headset/PTT system.

This can be useful for:

• Security personnel
• Event staff
• Construction workers
• Warehouse operators
• Hotel staff
• Industrial technicians

Because the headset and VOX hardware are optional, they should not be presented as included unless they are actually included in your package.

Two-Step Power Saving

The IC-F4021 includes a two-step power-saving function designed to reduce battery consumption during periods of lower radio activity.

This can help extend practical operating time during normal work shifts.

Low Battery Warning

A low-battery beep function alerts the user when the radio requires battery attention.

This is particularly useful for professional users who depend on their radio throughout a work shift and need advance warning before the battery becomes depleted.

DTMF Autodial

The keypad version provides DTMF functionality, including memory for up to 8 DTMF autodial entries according to published specifications.

This provides additional flexibility for users working with compatible signaling systems.

Rugged Aluminum Die-Cast Chassis

The IC-F4021 series uses an aluminum die-cast chassis as part of its rugged construction.

This provides a solid internal structure suitable for professional handheld use.

The radio was also designed to meet environmental requirements associated with MIL-STD-810 testing. Published Icom literature identifies MIL-STD-810 C/D/E for the series, while some later catalog/product listings reference additional revisions depending on documentation/version.

For maximum accuracy on your website, I recommend writing:

“Rugged construction designed to meet applicable MIL-STD-810 environmental requirements.”

rather than claiming that every unit has passed every revision of MIL-STD-810.

IP54 Dust & Splash Protection

The IC-F4021 series is specified as meeting IP54 requirements for dust protection and splash resistance.

This means the radio is designed to offer protection against:

• Limited dust ingress
• Water splashes

However, IP54 does not mean waterproof or submersible.

Therefore, I strongly recommend that your website use:

“IP54 Dust & Splash Resistant”

instead of:

❌ Waterproof
❌ Fully waterproof
❌ Submersible

Battery & Operating Time

The IC-F4021 series was supplied with the BP-232N 2000mAh Lithium-Ion battery pack in relevant configurations.

Published specifications indicate approximately 15.5 hours operating time under a 5:5:90 transmit/receive/standby duty cycle with power saving enabled.

This is a test/typical operating figure rather than a guaranteed real-world runtime.

Actual battery life varies depending on:

• Transmit time
• Receive time
• Standby time
• Power-saving settings
• Battery condition
• Battery age
• Temperature
• Signal conditions
• Accessories

For your website, a safe wording is:

“Up to approximately 15.5 hours typical operating time with BP-232N battery under specified test conditions.”

Technical Specifications

The specifications above are based primarily on published IC-F4021 documentation and technical listings. Exact values can vary by model variant and supplied configuration.

Dimensions & Weight

The published dimensions of the IC-F4021 series are approximately:

53 × 120 × 36.9 mm

with projections excluded.

Weight is approximately:

296g including BP-232N battery

according to the published specification.

This gives the radio a relatively compact professional form factor while retaining a full keypad and LCD display.

Professional Applications

Security Services

The IC-F4021 is well suited for professional security operations requiring fast team communication.

Potential applications include:

• Security guards
• Security supervisors
• Industrial security
• Shopping malls
• Commercial buildings
• Residential security
• Factory security
• Property management

Construction Sites

Construction environments often require instant communication between supervisors, engineers, workers and security personnel.

The IC-F4021 can be used for:

• Site management
• Safety teams
• Engineering teams
• Security
• Equipment coordination
• Material movement
• Maintenance

Manufacturing & Factories

The radio is suitable for communication between:

• Production teams
• Maintenance teams
• Supervisors
• Technical personnel
• Warehouse teams
• Factory security

Logistics & Warehousing

Useful for:

• Warehouse operations
• Loading/unloading
• Distribution centers
• Dispatch coordination
• Inventory operations
• Transport support

Hotels & Hospitality

Potential departments include:

• Security
• Housekeeping
• Maintenance
• Engineering
• Front office
• Event operations

Events & Organizations

The radio can help event teams coordinate:

• Security
• Logistics
• Stage operations
• Guest management
• Technical teams
• Emergency coordination

Retail & Commercial Facilities

Suitable for:

• Shopping centers
• Supermarkets
• Retail outlets
• Commercial buildings
• Facility management
• Maintenance teams

Why Choose ICOM IC-F4021?

Professional Icom Engineering

Icom has a long history in professional radio communication equipment, and the IC-F4021 was developed as a professional conventional handheld radio platform.

128 Channels

The 128-channel capacity provides considerably more flexibility than basic 8- or 16-channel radios.

8 Zones

Multiple zones make it easier to organize channels for different departments or locations.

Full Keypad

The keypad-equipped version provides more direct control and configuration flexibility.

LCD Display

The 8-character alphanumeric display allows users to identify programmed channels and operating information.

Strong Audio

The approximately 500mW audio output is designed for clear handheld communication.

Professional Signaling

CTCSS, DTCS, 2-Tone, 5-Tone and MDC 1200 compatibility provide advanced communication-management possibilities.

Rugged Construction

The aluminum die-cast chassis and IP54 protection make it appropriate for professional working environments.

Advanced Safety Options

Lone Worker is built in, while Man Down can be added through an optional module depending on configuration.

Communication Range

I do not recommend publishing a fixed range such as “5 km,” “10 km,” or “20 km” for the IC-F4021.

Actual communication distance can vary significantly depending on:

• Terrain
• Building density
• Antenna
• Radio height
• Transmit power
• Interference
• Frequency configuration
• Indoor/outdoor operation
• Repeater availability
• Environmental conditions

A professional website description should therefore say:

“Designed for reliable professional UHF communication. Actual communication range varies according to terrain, environment, antenna, radio configuration and operating conditions.”

This is much more technically accurate than promising a specific kilometre range.

What’s in the Box

Depending on the exact IC-F4021 configuration, package contents can include:

• ICOM IC-F4021 radio
• BP-232N Lithium-Ion battery
• UHF antenna
• Belt clip
• Charger / charging system
• Unit cover
• User documentation

Icom’s published material notes that supplied accessories may differ according to version.

Therefore, for your website I recommend:

Package contents may vary depending on the selected configuration. Please contact us to confirm the exact package before ordering.

Product Condition Notice

Because the IC-F4021 is an older/discontinued radio series, I strongly recommend that your product page clearly specify the actual condition of your stock.

For example:

If your stock is unused old stock:

Condition: New Old Stock / Unused — subject to stock verification

If refurbished:

Condition: Professionally Refurbished

If used:

Condition: Used — Tested and Functional

Do not write “Brand New” unless the actual unit and packaging support that claim.

Current reseller listings identify IC-F4021 variants as discontinued, while Icom continues to provide instruction-manual/support resources for the series.

Regulatory Considerations

The IC-F4021 is a professional UHF radio. The exact frequency programming and legal operation depend on the frequency variant and applicable regulations.

For Bangladesh, you should not advertise this radio as universally “license-free” without confirming that the specific frequency configuration and intended use are authorized.

A suitable website disclaimer is:

“Radio frequency operation is subject to applicable Bangladesh regulatory requirements. Frequency programming and operation should comply with BTRC rules and applicable authorization requirements.”
