Motolink MT-203 Professional SBR Two-Way Radio

The Motolink MT-203 is a professional SBR (Short Business Radio) analog two-way radio designed for reliable short-range business and workplace communication. Operating in the 245–246 MHz frequency range with 1W RF output power, the MT-203 provides a practical communication solution for organizations that require dedicated radio communication between team members.

The radio is designed for professional environments such as factories, garment industries, security services, construction sites, warehouses, hotels, commercial facilities, event management and facility operations, where fast and direct team communication can be an important part of daily operations.

Available technical documentation lists the MT-203 with 128-channel capacity, 12.5 kHz/25 kHz PLL channel spacing, a 7.5V battery system, 4500mAh battery capacity, more than 0.5W receive audio output, 1W RF output and an operating temperature range of -20°C to +60°C.

The MT-203 is also documented in Bangladesh telecommunications records as a Motolink SBR walkie-talkie operating from 245 MHz to 246 MHz with 1 Watt output and FM/F3E modulation.

Key Features

Professional SBR Communication

The MT-203 is designed specifically for Short Business Radio (SBR) communication, making it suitable for organizations that need dedicated radio-to-radio communication within their operational teams.

Unlike mobile-phone-based communication, a two-way radio allows users to communicate through a Push-to-Talk workflow without having to dial individual phone numbers for routine team communication.

This makes the MT-203 practical for workplaces where quick communication between supervisors, security personnel, technicians, operators and other staff is required.

245–246 MHz Operating Frequency

The Motolink MT-203 operates in the 245–246 MHz frequency range according to available technical and Bangladesh regulatory documentation.

This frequency configuration is associated with the SBR deployment of the model in Bangladesh.

For commercial deployment, users should ensure that the radio is configured and operated according to the applicable Bangladesh telecommunications requirements.

1 Watt RF Output

The MT-203 is specified with 1W RF transmit output power.

The 1W output makes the radio suitable for professional short-business communication without positioning it as a high-power long-range radio.

Actual communication distance depends heavily on environmental conditions, antenna performance, buildings, terrain, interference, radio positioning and regulatory configuration.

Up to 128 Channel Capacity

Technical documentation available for the MT-203 lists a 128-channel capacity.

Multiple channels can allow an organization to organize communication according to different teams, departments or operational requirements.

For example, a business may configure different channels for:

• Security
• Maintenance
• Operations
• Supervisors
• Warehouse
• Management
• Event coordination

Actual channel availability depends on the programmed configuration of the specific radio.

12.5 kHz / 25 kHz Channel Spacing

The technical specification lists 12.5 kHz and 25 kHz PLL channel spacing.

The appropriate bandwidth/channel spacing should be configured according to the authorized frequency plan and radio programming.

For Bangladesh SBR deployment, official documentation for one MT-203 installation specifies 12.5 kHz channel spacing.

High-Capacity 4500mAh Battery

The MT-203 is documented with a 4500mAh battery capacity and approximately 7.5V battery voltage in the available technical description.

A higher-capacity battery can be useful for professional users who need the radio available throughout a working shift.

Actual battery runtime depends on:

• Transmission frequency
• Transmit duration
• Standby time
• Channel activity
• Battery condition
• Charging practices
• Operating temperature
• Radio configuration

Therefore, it is better not to advertise a fixed number of operating hours unless it has been verified with your actual supplied battery.

Strong Audio Output

The technical specification lists receive audio power above 0.5W and audio distortion of ≤5%.

This makes the MT-203 suitable for workplace environments where users need audible radio communication.

Actual perceived audio clarity can vary depending on environmental noise, speaker condition, radio configuration and user distance.

FM / F3E Modulation

The MT-203 technical documentation lists 16KφF3E / 8KφF3E modulation and identifies the Bangladesh regulatory configuration as F3E / FM.

This confirms the radio as an analog FM two-way communication device rather than a digital DMR or 4G PoC radio.

Professional Ruggedness

The available MT-203 specification states that shock and vibration performance is according to GJB150-2009 and MIL-STD-810 C/D/E/F standards.

This makes the model appropriate for professional environments where a radio may be exposed to everyday handling, movement and workplace vibration.

However, these standards should not be interpreted as meaning the radio is waterproof or indestructible. A specific IP waterproof/dustproof rating was not reliably established in the sources reviewed, so I recommend not advertising the MT-203 as waterproof or IP-rated unless your actual product documentation confirms it.

Compact Professional Handheld Design

The documented MT-203 dimensions are approximately:

145 × 60 × 55 mm without antenna.

The handheld form factor is designed for portable professional communication.

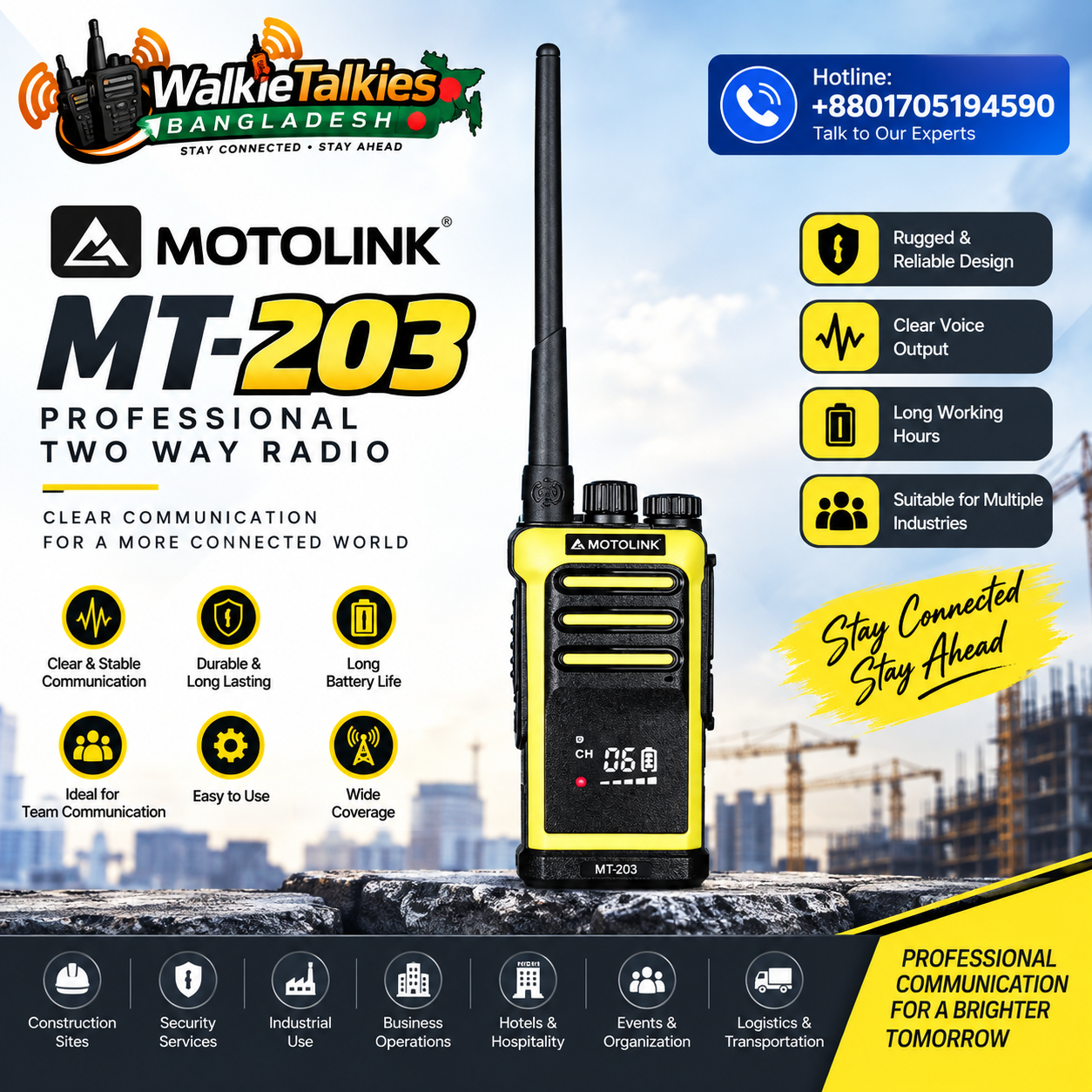

The physical layout shown in your supplied product image includes:

• Long external antenna
• Top-mounted control knobs
• Front speaker grille
• Front display/indicator area
• Side Push-to-Talk control
• Rugged handheld body
• Belt-carry-friendly form factor

The actual physical dimensions and appearance may vary slightly by production batch or accessory configuration.

Technical Specifications

*Channel capacity should be confirmed against the exact supplied configuration before publishing because some Bangladesh listings inconsistently describe the MT-203 as a 12-channel model despite also reproducing a 128-channel technical table.

Transmitter Specifications

The MT-203 transmitter is specified with:

RF Output Power: 1W

Modulation: F3E / FM

Modulation Type: 16KφF3E / 8KφF3E

Maximum Modulation Deviation: ±5 kHz / ±2.5 kHz

Modulation Distortion: 5%

Residual FM: -45 dB

Adjacent Channel Power: -67 dB

Radiated Emission: -36 dBm

These figures are based on the available MT-203 technical documentation.

Receiver Specifications

Available specifications list:

Receive Audio Power: >0.5W

Audio Distortion: ≤5%

Blocking: ≥80 dB

FM Hum & Noise: ≥45 dB at 25 kHz and ≥40 dB at 12.5 kHz

The receiver specifications describe the radio’s performance under stated test conditions. Real-world reception can vary depending on interference, terrain, buildings, antenna position and radio configuration.

Operating Temperature

The MT-203 is specified for an operating temperature range of:

-20°C to +60°C

The listed storage temperature range is:

-20°C to +70°C.

This makes the radio suitable for a broad range of indoor and outdoor working environments.

Shock & Vibration Resistance

The technical specification references GJB150-2009 and MIL-STD-810 C/D/E/F for shock and vibration performance.

This is particularly relevant for professional environments such as:

• Construction sites
• Industrial facilities
• Factories
• Warehouses
• Security operations
• Transportation environments
• Outdoor work areas

It is important to distinguish shock/vibration specifications from waterproofing. The sources reviewed did not establish an official IP rating for this model.

Communication Range

The communication range of a two-way radio cannot be accurately represented by a single guaranteed kilometer figure.

The real-world range of the Motolink MT-203 can vary depending on:

• Terrain
• Buildings
• Concrete walls
• Metal structures
• Trees
• Antenna position
• Radio height
• Interference
• Frequency conditions
• User location
• Environmental noise
• Radio programming

One Bangladesh corporate purchase document lists a 01–05 km range for the MT-203, but this should be treated as a particular procurement specification rather than a universal guaranteed range for every environment.

For your website, I recommend using:

“Designed for reliable professional short-business communication”

rather than guaranteeing a fixed range.

Professional Workplace Communication

The MT-203 is particularly useful where teams need immediate radio communication without depending on cellular voice calls.

A typical workplace can organize radios according to operational requirements.

For example:

Channel 1 — Security

Channel 2 — Maintenance

Channel 3 — Operations

Channel 4 — Supervisors

Channel 5 — Warehouse

Actual channel programming must follow the authorized radio configuration.

Recommended Applications

Security Services

The MT-203 can be used by:

• Security guards
• Security supervisors
• Gate personnel
• Building security teams
• Shopping mall security
• Factory security
• Residential complex security
• Event security

Fast Push-to-Talk communication can help security teams coordinate routine operations and respond quickly to operational requests.

Construction Sites

Construction sites often involve multiple teams working across different areas.

The MT-203 can support communication between:

• Site supervisors
• Engineers
• Security personnel
• Technicians
• Equipment operators
• Maintenance teams
• Logistics staff

Factories & Manufacturing

The MT-203 can be used by factory teams for communication between:

• Production
• Maintenance
• Security
• Supervisors
• Warehouse
• Administration
• Facility management

Garment Factories

Large garment facilities often require fast communication between operational areas.

The MT-203 can be considered for:

• Security
• Production supervision
• Maintenance
• Warehouse
• Fire & safety coordination
• Facility operations

Warehouses & Logistics

The radio can help warehouse teams communicate between:

• Loading areas
• Storage areas
• Dispatch
• Security
• Supervisors
• Transportation teams

Hotels & Hospitality

The MT-203 can support communication between:

• Security
• Housekeeping
• Maintenance
• Front office
• Operations
• Event teams

Events & Event Management

Event teams can use professional two-way radios for coordination between:

• Security
• Event management
• Technical teams
• Logistics
• Guest management
• Operations staff

Shopping Malls & Commercial Facilities

The MT-203 can provide dedicated communication between security, maintenance, management and facility teams.

Facility Management

For large buildings, factories and commercial facilities, radio communication can help maintenance and security teams coordinate day-to-day activities.

Why Choose the Motolink MT-203?

The MT-203 offers a combination of professional SBR operation, 1W RF output, large battery capacity and rugged environmental specifications.

Key advantages include:

• Professional SBR radio platform
• 245–246 MHz operating range
• 1W RF output
• Up to 128-channel capacity according to technical documentation
• 12.5 kHz / 25 kHz channel spacing
• 4500mAh battery

• 0.5W receive audio output

• F3E/FM analog communication
• Compact professional handheld design
• -20°C to +60°C operating temperature
• -20°C to +70°C storage temperature
• Shock and vibration specification referencing GJB150-2009 and MIL-STD-810 C/D/E/F
• Suitable for business and industrial applications
• Suitable for security and facility operations
• Suitable for factories, warehouses and construction sites

SBR Radio for Bangladesh Business Communication

The Motolink MT-203 is especially relevant to the Bangladesh market because official Bangladesh documentation identifies the model specifically as an SBR walkie-talkie operating at 245–246 MHz with 1W output.

The model also appears in Bangladesh import records, confirming that MT-203 units have been imported into Bangladesh in recent years.

Regulatory Consideration

Because the MT-203 operates in a regulated radio-frequency range, businesses should ensure that their use of the equipment complies with applicable Bangladesh Telecommunication Regulatory Commission (BTRC) requirements.

A BTRC application document for MT-203 specifically records:

Model: Motolink MT-203

Frequency: 245–246 MHz

Power: 1 Watt

Modulation: F3E / FM

Channel spacing: 12.5 kHz

and identifies the equipment as a walkie-talkie/SBR radio.

The same BTRC documentation states that import/use of wireless equipment is subject to applicable authorization and regulatory conditions.

Therefore, your website should avoid suggesting that the MT-203 can automatically be operated anywhere in Bangladesh without the necessary authorization.

Battery & Charging

The documented MT-203 specification lists a 7.5V, 4500mAh battery configuration.

The relatively high listed battery capacity is useful for professional users who require the radio throughout their working schedule.

For best battery performance:

• Fully charge the battery before extended use.
• Avoid unnecessary continuous transmission.
• Store the radio and battery under appropriate conditions.
• Replace batteries when their capacity has significantly degraded.
• Use compatible charging equipment.

Actual battery life should be measured based on your specific radio/battery configuration and operating pattern.

Product Design

The MT-203 has a rugged handheld design intended for professional use.

The supplied product image shows a distinctive yellow-and-black body, long antenna, top-mounted control knobs, front speaker grille and front status/display area.

The bright yellow housing can also make the radio easier to visually identify in busy work environments.

Suggested Package Contents

The exact contents should always be based on your actual inventory.

A typical package may include:

• Motolink MT-203 Radio
• Rechargeable Battery
• Antenna
• Desktop Charger
• Belt Clip
• Charging Accessories
• User Manual

Important: Only publish the above as the confirmed package contents if these items are actually included with your supplied MT-203 units.

Product Specifications at a Glance

Model: Motolink MT-203

Radio Type: Professional SBR Analog Two-Way Radio

Frequency: 245–246 MHz

RF Output: 1W

Channel Capacity: Up to 128 channels according to technical documentation

Channel Spacing: 12.5 / 25 kHz

Battery: 4500mAh

Battery Voltage: 7.5V

Audio Output: >0.5W

Operating Temperature: -20°C to +60°C

Storage Temperature: -20°C to +70°C

Dimensions: 145 × 60 × 55 mm without antenna

Modulation: F3E / FM

Shock/Vibration: GJB150-2009 / MIL-STD-810 C/D/E/F referenced

Who Should Buy the Motolink MT-203?

The MT-203 is a good fit for organizations looking for a professional SBR communication solution rather than a consumer recreational radio.

Recommended users include:

• Security Companies
• Factories
• Garment Factories
• Construction Companies
• Warehouses
• Logistics Companies
• Hotels
• Restaurants
• Shopping Malls
• Event Management Companies
• Facility Management Companies
• Industrial Facilities
• Corporate Offices
• Commercial Buildings
• Maintenance Teams
• Transportation Operations

Important Product Note

There are currently inconsistent channel-count descriptions across Bangladesh retail listings. Some sellers title the product as a “12-channel” MT-203 while reproducing technical specifications that state 128-channel capacity.

For a professional e-commerce website, I recommend using:

“Up to 128 Channels — subject to exact radio configuration”

unless you have checked the programming/software or documentation of your exact inventory.

This is much safer than simply writing “12 channels” or “128 channels” without qualification.

Important Range Note

I also recommend not using “10 KM Long Range,” “20 KM Range,” or similar fixed claims unless you have tested the actual product in the environment where you intend to market it.

A procurement document does mention 01–05 km for one MT-203 purchase, but that is not sufficient evidence for a universal range claim.
